PIACENZA (Italie) Orgue Serassi 1838

Ajouter au panier
  • Description
  • Plus

L'orgue du Padre Davide : 57 jeux - 2 claviers et pédalier

Format Surround 6 canaux -> Hauptwerk Version Avancée

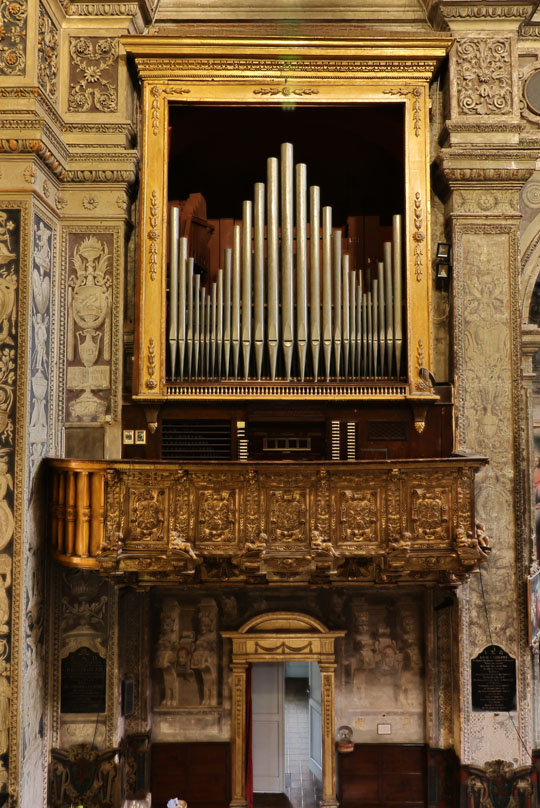

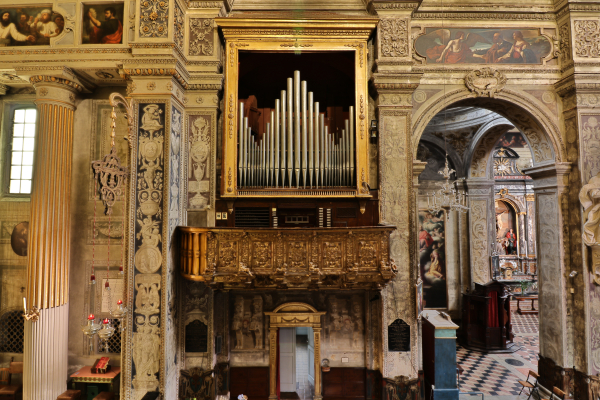

Un grand orgue italien du XIXe siècle construit sous la maîtrise d’œuvre de Padre Davide da Bergamo entre 1825 et 1838. Un instrument dont l'esprit tellement orchestral surprend et étonne dans compositions aux accents de musique d'opéra ! Des accessoires comme les timbales, plusieurs rangs de clochettes, des jeux innovants comme la flûte traversière, le cor de chasse, le violoncelle, etc.  apportent une couleur unique à cet instrument signé par la très célèbre manufacture des Frères Serassi.

1. Manual (Organo Eco)  c0–c4
enclosed in a swell box
Principale 8'
Ottava bassi 4'
Ottava soprani 4'
Quintadecima 2'
Decimanona 1 1/3'
Vigesimaseconda 1'
Due di Ripieno 2x
Flauto in VIII soprani   4'
Violoncello soprani 16'
Arpone bassi 16'

Tremolo Eco

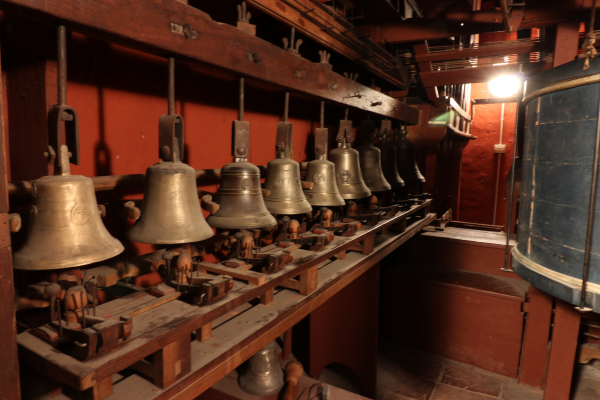

Campane di armonia
(soft bells, c1-c2)
2. Manual (Grand'Organo) FF–c4
Principale bassi 16'
Principale soprani 16'
Principale bassi 8'
Principale soprani 8'
Principale II bassi 8'
Principale II soprani 8'
Ottava bassi 4'
Ottava soprani 4'
Ottava II 4'
Duodecima 2 2/3'
Quintadecima 2'
Decimanona 1 1/3'
Due di Ripieno I 2x
Due di Ripieno II 2x
Due di Ripieno III 2x
Due di Ripieno IV 2x
Due di Ripieno V 2x

Cornetto I 2x
Cornetto II 2x
Fagotto bassi 8'
Tromba soprani 16'
Clarone bassi 4'
Clarino bassi 2'
Corno Inglese soprani 16'
Cornamusa soprani 8'
Oboe soprani 8'
Violone bassi 8'
Viola bassi 4'
Violetta soprani 8'
Flutta soprani 8'
Fluttina bassi 2'
Corni da Caccia soprani   16'
Flauto in VIII 4'
Flauto in XII bassi 2 2/3'
Flauto in XII soprani 2 2/3'
Flagioletto bassi 1/2'
Ottavino soprani 2'
Voce Umana soprani 8'

Campanelli soprani
(small bells)




Pedale C–H
Contrabassi e Ottave 16'
Timballi in tutti i toni
Timballi in cinque toni
Bombarde 16'
Tromboni 8'

Campane di voce naturale
(loud bells, C-c0)
Campane di tuba dolce
(soft bells, C-c0)


Accouplements:

  • Terzamano (II/II 4'), enabled either by pulling a drawstop, or enabled by f0 key of the pedalboard. This is the original functionality and modelled so in Hauptwerk.
  • Unione dei due organi (I/II 8')
  • Unione Tasto-Pedale (II/P 8')
  • Unione Controttava al Pedale (II/P 16')

Accessories:

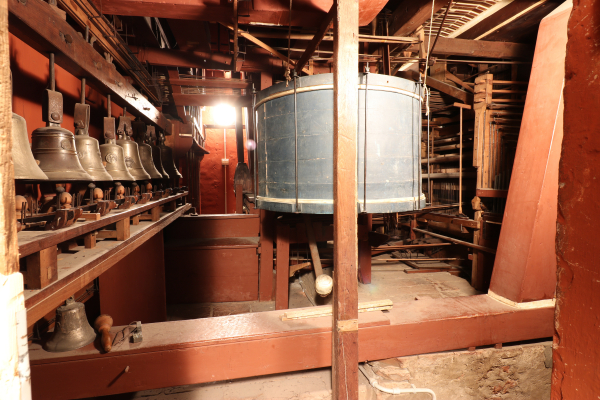

  • Rollante (a drum). Operation possible via two switches. Either enabled by pulling a Rollante drawstop, or enabled by g0 key of the pedalboard. This is the original functionality and modelled so also in Hauptwerk. Rollante can be voiced (for example to adjust volume) using the Hauptwerk pipe voicing using the appropriate virtual rank (Rollante, Gran Cassa) and the sliders of the key 17 (F). Always disengage and engage Rollante after each voicing attempt to apply the voicing changes. Voicing is not applied to a sounding pipe in Hauptwerk.
  • Gran Cassa (an orchestra hit) located right of the pedalboard as a foot switch. In addition to that, it can be operated by f#0 key of the pedalboard in Hauptwerk. The pedalboard operation is not original, it is modelled to allow the Gran Cassa operation on those consoles where no proper foot switches are available. Gran Cassa can be voiced using the Hauptwerk pipe voicing using the appropriate virtual rank (Rollante, Gran Cassa) and the sliders of the key 21 (A).
  • Tiratutti (Principal Plenum combination) - foot switch located right of the pedalboard.
  • Combinazione libera alla Lombarda  - a free combination. Preselect the stops on the dedicated Hauptwerk screen and activate them all at once by pressing the Combinazione libera button. (The action of Combinazione libera is identical to Hauptwerk Master Reversible Combinations.). Only stops of the Grand'Organo may be preselected for Combinazione libera. The preselection of a particular stop is visible on the photorealistic tabs by means of a vertical bar on the left edge of the stop labe. This bar is even clickable to change the combinazione libera directly from the photorealistic tabs in Hauptwerk.
  • Gelosia Organo Eco (swell pedal) located left of the pedalboard.
  • Ance al'Organo Grande (on/off switch for all reeds on manuals) foot switch located left of the pedalboard.
  • Campane switch - enabling the tracker to the bells. When off, the bells do not sound.
  • Foot switches for some stops available in the form of small latch-down foot pedals, sometimes in addition to drawstops for some characteristic stops. On the real console, these switches are ordered as follows (from left to right): Fagotto bassi, Corno Inglese soprani, Flagioletto bassi, Cornamusa, Campane, Unione dei due Organi, Gran Cassa, Tiratutti.


---------------------------------------------------------------------------------------------

Mémoire vive requise :

6-canaux surround

  • 16-bit, other settings default: 16.8 GB
  • 20-bit, other settings default: 27.3 GB (recommandé)
  • 24-bit, other settings default: 32.7 GB



2-canaux (front-direct solo en semi-dry ou wet)

  • 16-bit, other settings default: 6.1 GB
  • 20-bit, other settings default: 9.3 GB
  • 24-bit, other settings default: 10.9 GB
